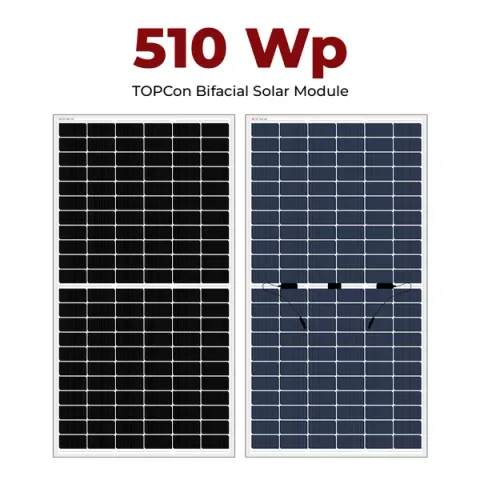

UTL 510 Watt/24 Volt Bifacial N-Type TOPCon Solar Panel
UTL Solar , model UTL510-132BT
The UTL 510W Bifacial TOPCon Solar Panel combines high power output, advanced cell technology, and long-term performance—all optimized for Indian conditions. Built with N-Type TOPCon cells and bifacial architecture, it captures sunlight from both sides, enabling higher energy…
Specifications
| Module Type | UTL510-132BT |
|---|---|
| Maximum Power | 510Wp |
| Efficiency | 21.28% |
| No. of Cells | 132 Multi BB TOPCon Solar Cells |
| Product Warranty | 10 years |
| Output Warranty | 30 years |
| Size(in mm) | 2115 x 1133 x 35 |
| Weight | 26.50 KG |
| Power Tolerance | ±2% |
| Rated voltage – Vmp(V) | 39.54 |
| Rated current – Imp( A) | 12.90 |
| Short circuit current – Isc( A) | 13.47 |
| Open circuit voltage – Voc(V) | 46.11 |
| Max Fuse Rating | 35A |
| Encapsulation | Transparent Backsheet |
| Frame | Silver Anodized Aluminium Alloy |
| Front Glass | 3.2 mm, High Transmission, AR Coated Tempered Glass |
| Junction Box | IP68 certified, 3 diodes, Split junction box |
| Cables | 4 mm², 300 mm solar cable (customizable length) |
| Connectors | MC Type |
| Application Class | Class A |
| Electrical Safety | Class II |
| Fire Safety Rating | Class C (Type 1) |
| Mechanical Load Capacity | Snow: 5400 Pa, Wind: 2400 Pa |
As published by UTL Solar. We confirm figures that matter for your design against the current datasheet before you order.
About this product
With a power rating of 510W and a module efficiency of 21.28%, this solar panel allows you to achieve more output from less roof space. Whether you’re designing a compact rooftop system or scaling up a large solar project, the UTL 510W Bifacial TOPCon panel reduces BOS (Balance of System) costs, improves energy yield, and delivers long-term value.
