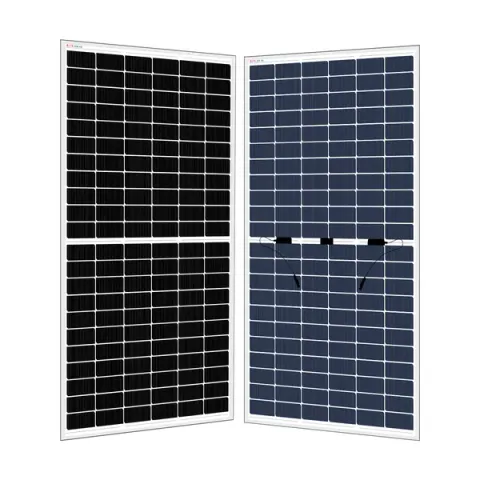

UTL 520W Mono DCR 24V Bifacial Solar Module
UTL Solar
The 520W Mono DCR bifacial solar panel features a durable dual-glass design. It uses 144 half-cut 10BB PERC cells to reduce power loss and deliver consistent performance.
Specifications
| Maximum Power | 520W |
|---|---|
| Technology | Bifacial Dual Glass |
| No. of Solar Cells | 144 Half-cut Cells |
| Product Warranty | 10 Years |
| Output Warranty | 27 Years |
| Weight | ~31.1 Kg |
| Dimensions (L*W*H) | 2277 mm x 1133 mm x 35 mm |
| Module efficiency | 20.16% |
| Frame | Anodized Aluminium Alloy |
| Front Glass | Semi-Tempered Glass with ARC coating |
| Surface load | Snow load 5400 P a, Wind load 2400 P a |
| Connectors | MC4 Type |
| Capacity rating – Pmax(Wp) | 520 |
| Back | Transparent Backsheet |
As published by UTL Solar. We confirm figures that matter for your design against the current datasheet before you order.
About this product
The UTL 520W Mono PERC bifacial solar panel is designed to deliver efficient power generation for residential and commercial rooftop installations. Built with advanced bifacial technology, it captures sunlight from both sides to enhance overall energy yield, especially in reflective environments.
The dual semi-tempered glass with ARC coating construction adds structural strength and improves resistance to environmental stress. It ensures long-term durability. With 20.16% module efficiency, the panel supports stable energy output under varying conditions. The integration of 144 half-cut 10BB PERC cells helps reduce internal losses and improves performance reliability.
