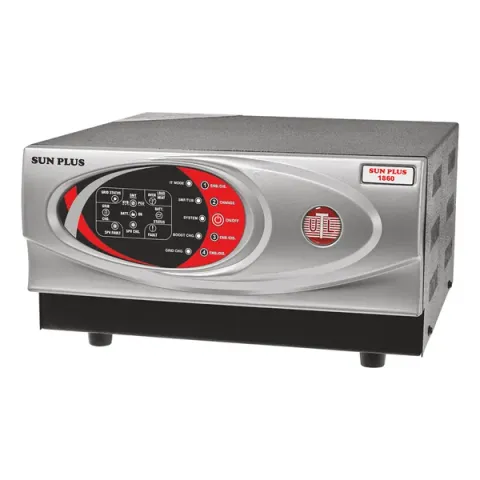

Sun Plus 1860 Modified Sine Wave Home Inverter
UTL Solar , model SUN PLUS 1860
The Sun Plus 1475VA/24V on-grid home inverter comes with priority mode selection and multi stage battery charging method. It’s a reliable power solution for homes, shops and other small setups.
Specifications
| Model | SUN PLUS 1860 |
|---|---|
| Technology | PWM |
| Max. Battery Capacity | 200AH |
| System Rating | 1475VA |
| Operating DC Voltage | 200AH |
| Weight | 14.2 KG |
| Dimension (LXWXH) | 306*274*166 mm |
| Maximum Solar PV Current | 50 A |
| Operating Temperature | 0 to 50 deg. C |
| Nominal Grid Voltage | 230V 1Φ |
| Maximum PV Power Recommended | (315W/320W/325W)X4 (Parallel) |
| Noise @ 1 meter | 50dB |
| Input Voltage Range (Min- Max) Voc | 31V-49.5V |
| Efficiency | >95% |
As published by UTL Solar. We confirm figures that matter for your design against the current datasheet before you order.
